Jimmy Page 1969 EDS-1275 Doubleneck Collector’s Edition, Signed, Exclusive Cherry
Ultra-precise Gibson Custom/Murphy Lab recreation of one of the most iconic guitars of all time. Mahogany body, 6-string and 12-string necks, Custombucker pickups; each guitar individually played and signed by Jimmy Page
One of the Most Iconic Guitars in History
One of the most iconic guitars in history is Jimmy Page’s Gibson EDS-1275 doubleneck. The images of him playing it on stage with Led Zeppelin are indelible to rock ’n’ roll history. Gibson has made doubleneck electric guitars since 1958, but Jimmy defined the model from the moment his EDS-1275 was delivered to him, allowing him to play the acoustic and electric 6-string and 12-string parts of Stairway to Heaven at live performances and later using it for The Song Remains the Same, The Rain Song, Celebration Day, Tangerine, and more recently at The Rock & Roll Hall of Fame in November 2023. Made in close collaboration and with significant input from Jimmy Page, this very special Collector’s Edition replication uses new 3D scanning technology and ultra-precise Murphy Lab aging techniques to aid in hand-crafting an effective clone of Jimmy Page’s original guitar. Every single detail has been thoughtfully replicated, from the exact playing wear to the sonic character. Only 50 Collector’s Edition replications have been created by the expert luthiers of the Gibson Custom Shop in Nashville, Tennessee, and artfully aged to match the original by the Murphy Lab as part of this extraordinary Collector's Edition run honoring both the guitar and the legendary guitarist who first made it famous, Jimmy Page.
Body Style
SG
Body Shape
EDS-1275
Body Material
One Piece Mahogany
Binding
Single-ply, Fretboards
Body Finish
Murphy Lab Aged Nitrocellulose Lacquer
Profile
Jimmy Page EDS-1275
Scale Length
628.65 mm / 24.75 in
Fingerboard Material
Indian Rosewood
Fingerboard Radius
304.8 mm / 12 in
Neck Material
Mahogany
Fret Count
20
Frets
Authentic Medium-Jumbo
Nut Material
Corian
Nut Width
42.8625 mm / 1.687 in
Inlays
Aged Cellulose Nitrate Parallelogram
Joint
Long Tenon, Hide Glue Fit
Finish
Chrome
Bridge
True Historic ABR-1
Saddle Material
Nickel
Tailpiece
Chrome 6/12 EDS-1275

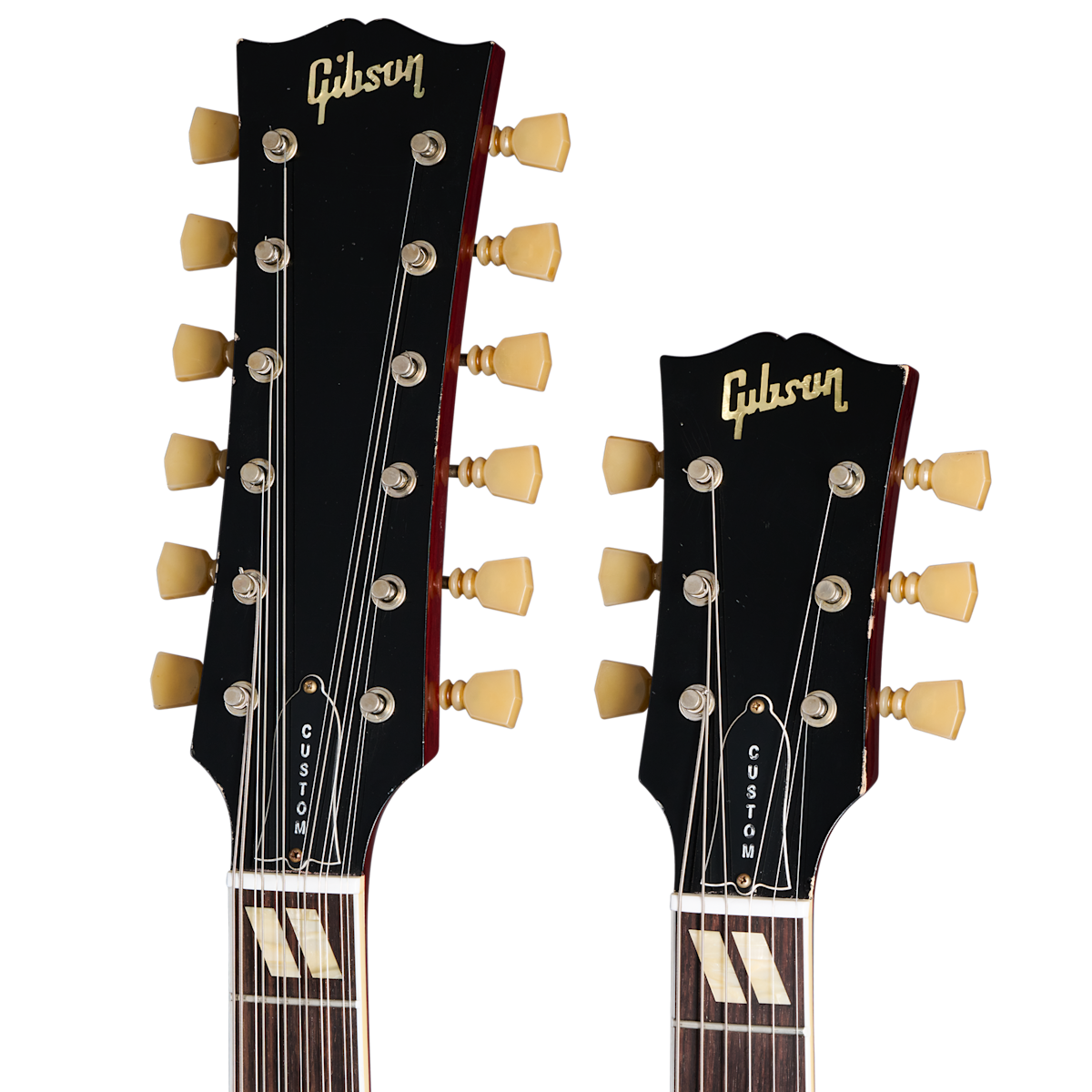

Tuning Machines
Kluson Double Line, Double Ring with Keystone Button
Pickguard
Jimmy Page EDS-1275
Truss Rod
Adjustable
Truss Rod Cover
3-ply Black with Vertical "Custom" Hot Stamp

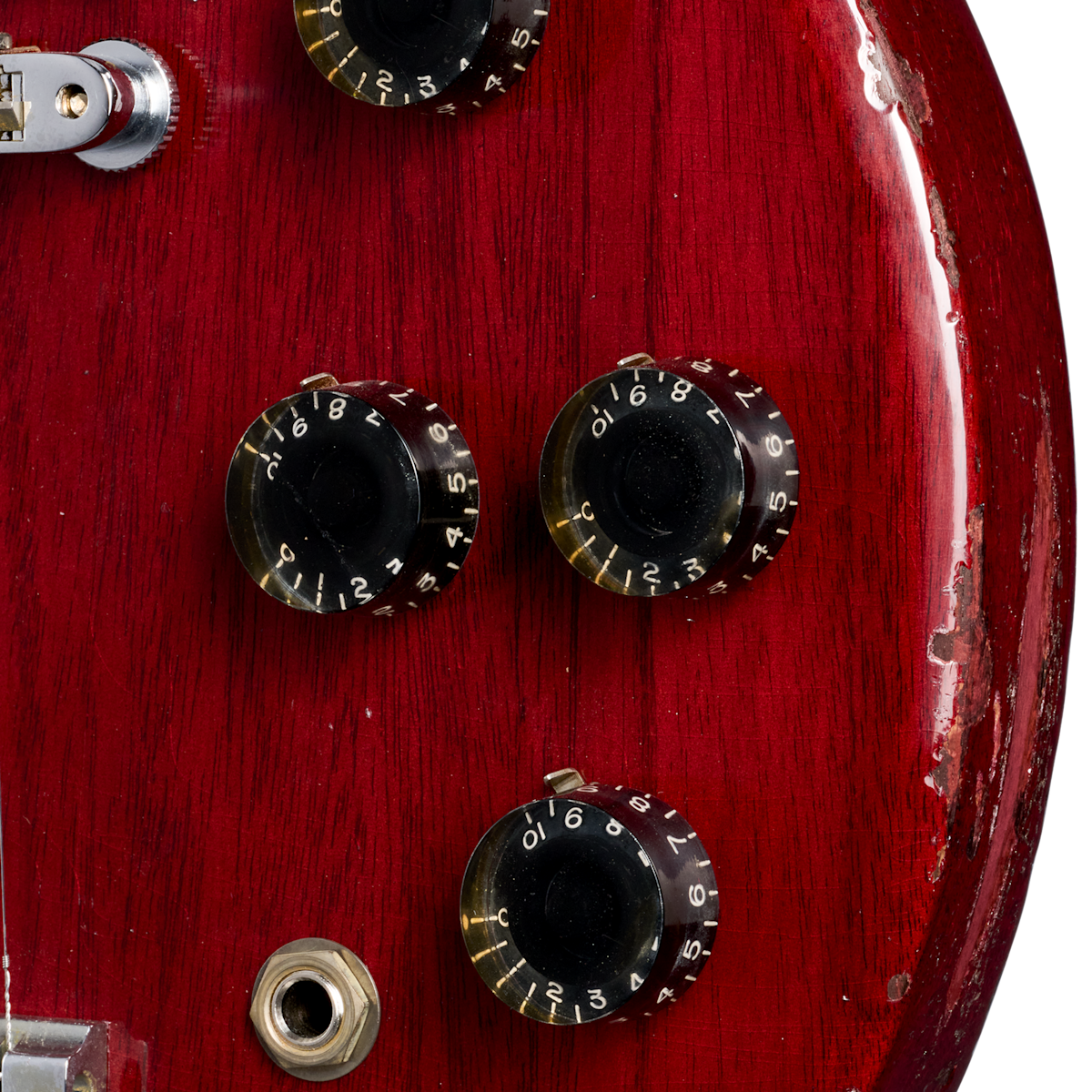

Control Knobs
Black Speed with Dial Pointer

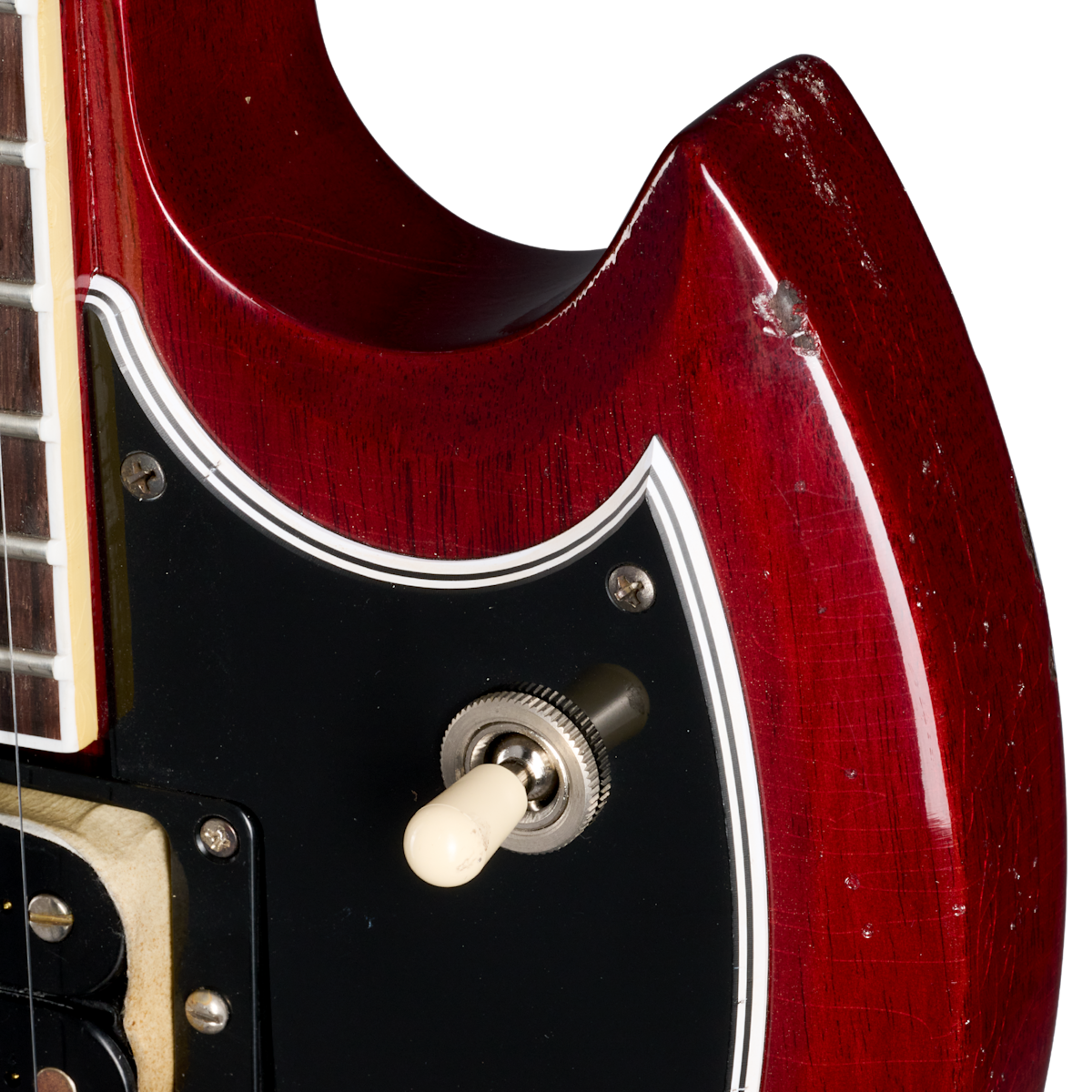

Switch Tip
Cream
Control Covers
Black
Strap Buttons
2 - Bottom and Behind 12-String Neck Heel; Schaller Strap Locks (Strap Hardware Included in the Case)
Mounting Rings
Black
Pickup Covers
12-String Pickups: True Historic Chrome, 6-String Pickups: None
Neck Pickup
Jimmy Page EDS-1275 Custombuckers, Double Black Bobbins, Alnico 5
Bridge Pickup
Jimmy Page EDS-1275 Custombuckers, Double Black Bobbins, Alnico 5
Controls
2 Volume, 2 Tone; Hand-wired with CTS Potentiometers and Period-correct Ceramic Disc Capacitors
Pickup Selector
3-way Switchcraft plus 3-way Switchcraft Neck Select Switch
Output Jack
1/4" Switchcraft
Strings Gauge
6-String Neck: .010, .013, .017, .026, .036, .046; 12-String Neck: 010, .014, .024, .009, .030, .012, .040, .018, .048, .0.28
Case
ZOSO Hardshell Case
Accessories
Certificate of Authenticity Book, Pick Display with Herco Flex pick played by Jimmy Page on specific serialized guitar, Premium Cherry/Black Leather Strap & Vintage Replica Strap, Embroidered Dragon Guitar Shroud & Gibson Doubleneck Stand
