1985 Gibson Spirit II XPL Prototype - SOLD - LEARN MORE
Finish:
1985 Gibson Spirit II XPL Prototype, Serial Number 80085510

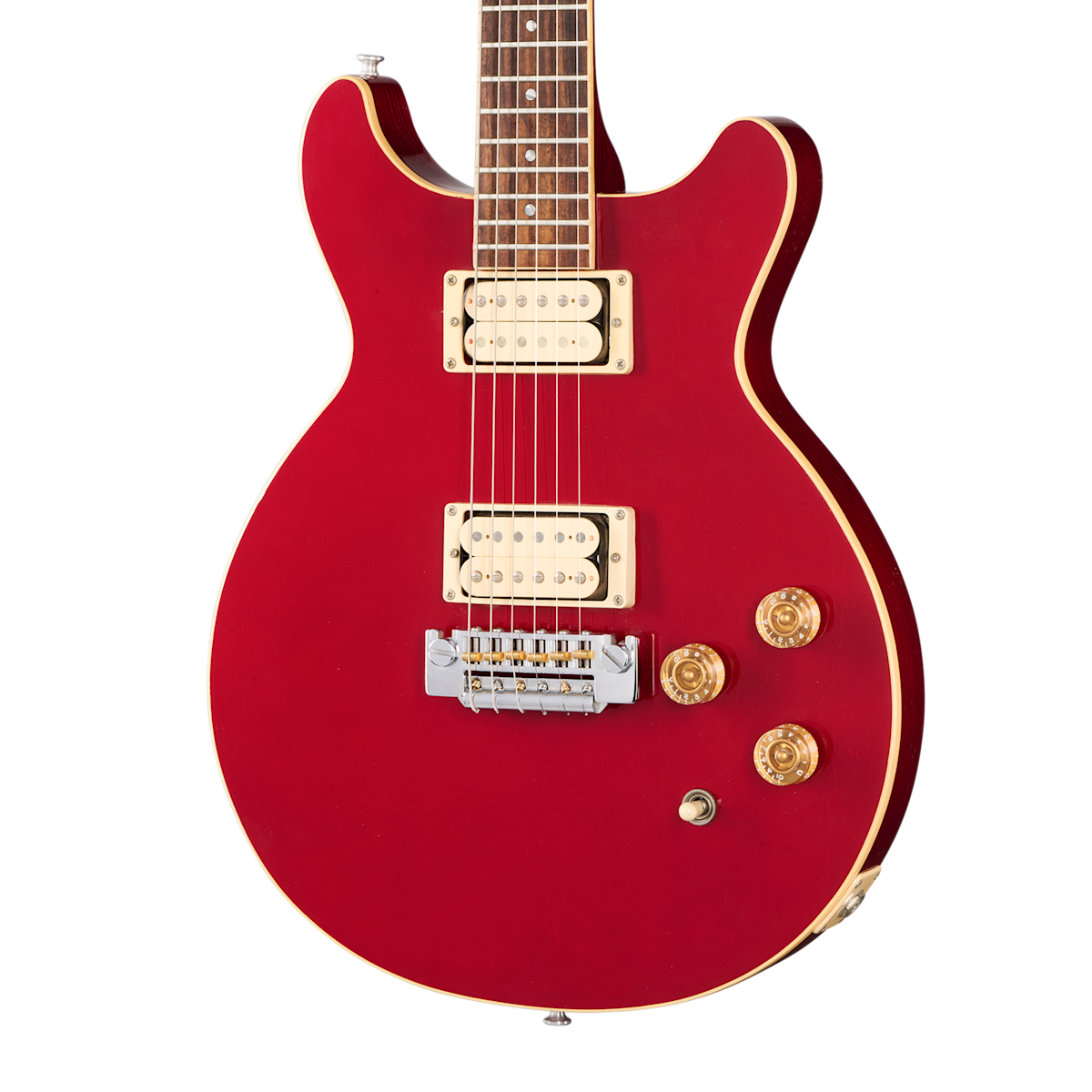

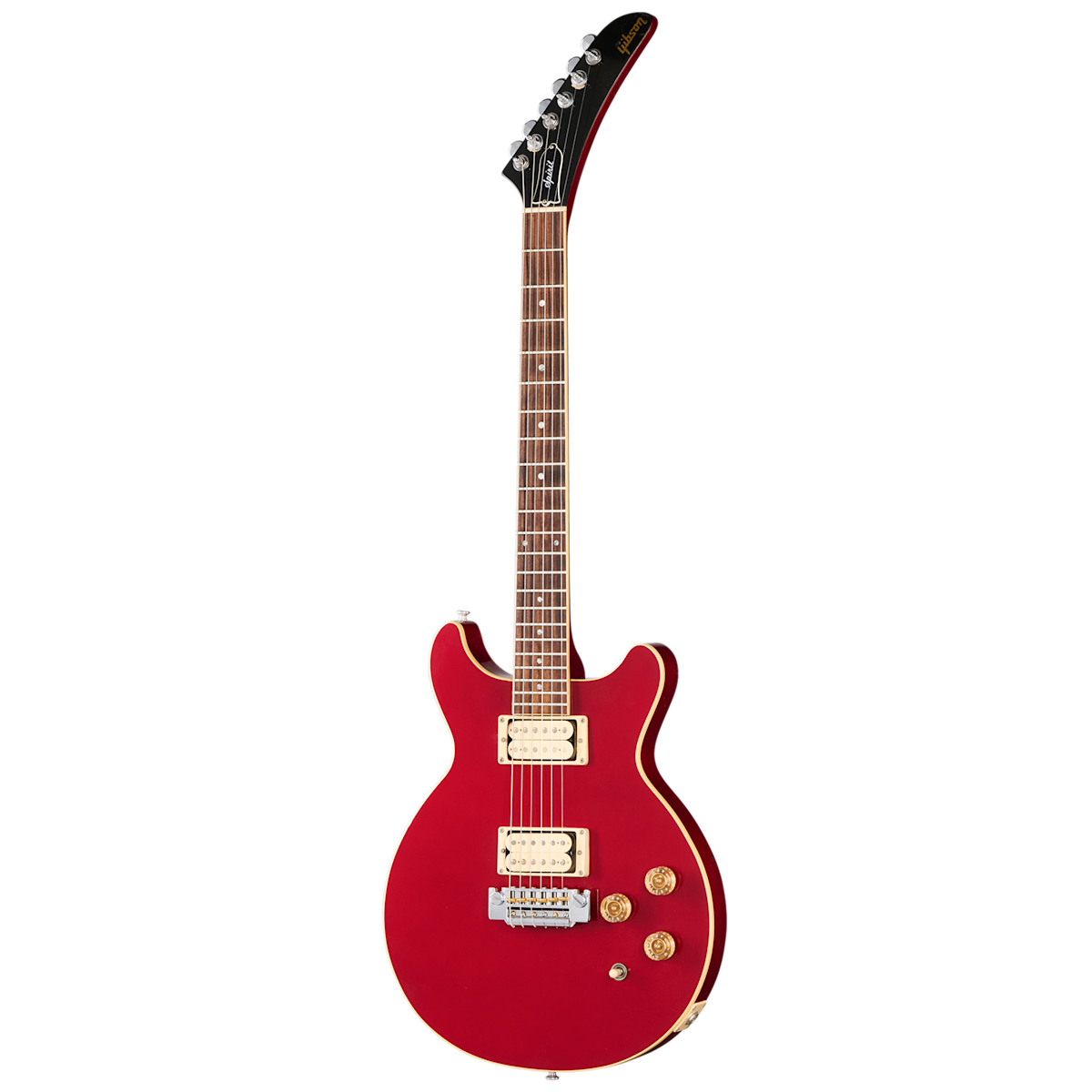

This rare 1985 Gibson Spirit II XPL Prototype comes directly from the Gibson Vault, offering a glimpse into Gibson’s design experimentation during the 1980s. As the era demanded faster playability, sleeker designs, and high-performance electronics, instrument makers adapted their models to reflect these changes. The Spirit II XPL was part of this shift, featuring a mahogany body, glued-in mahogany neck, and a pair of Patent Applied For-style humbuckers™, delivering classic Gibson warmth with added clarity.

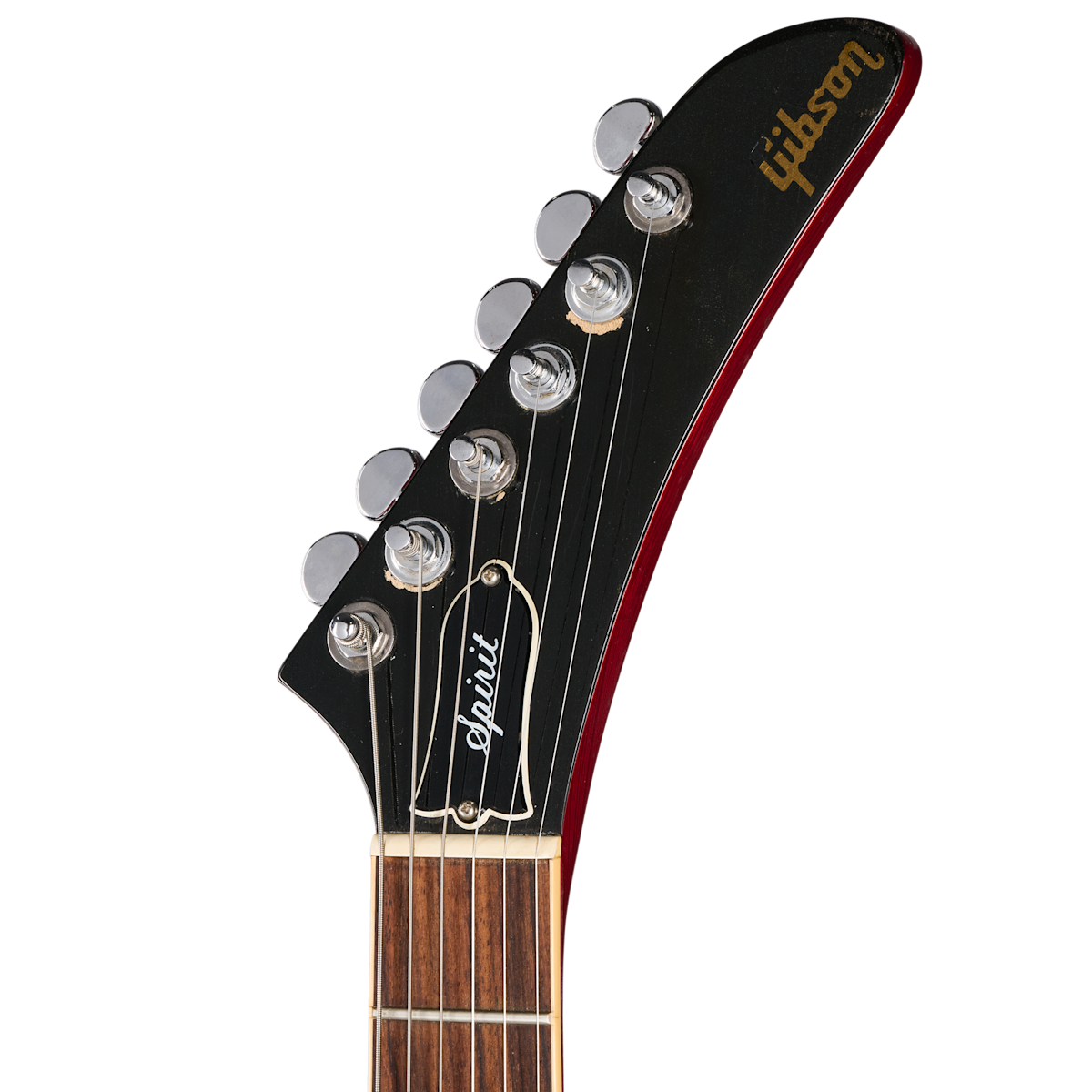

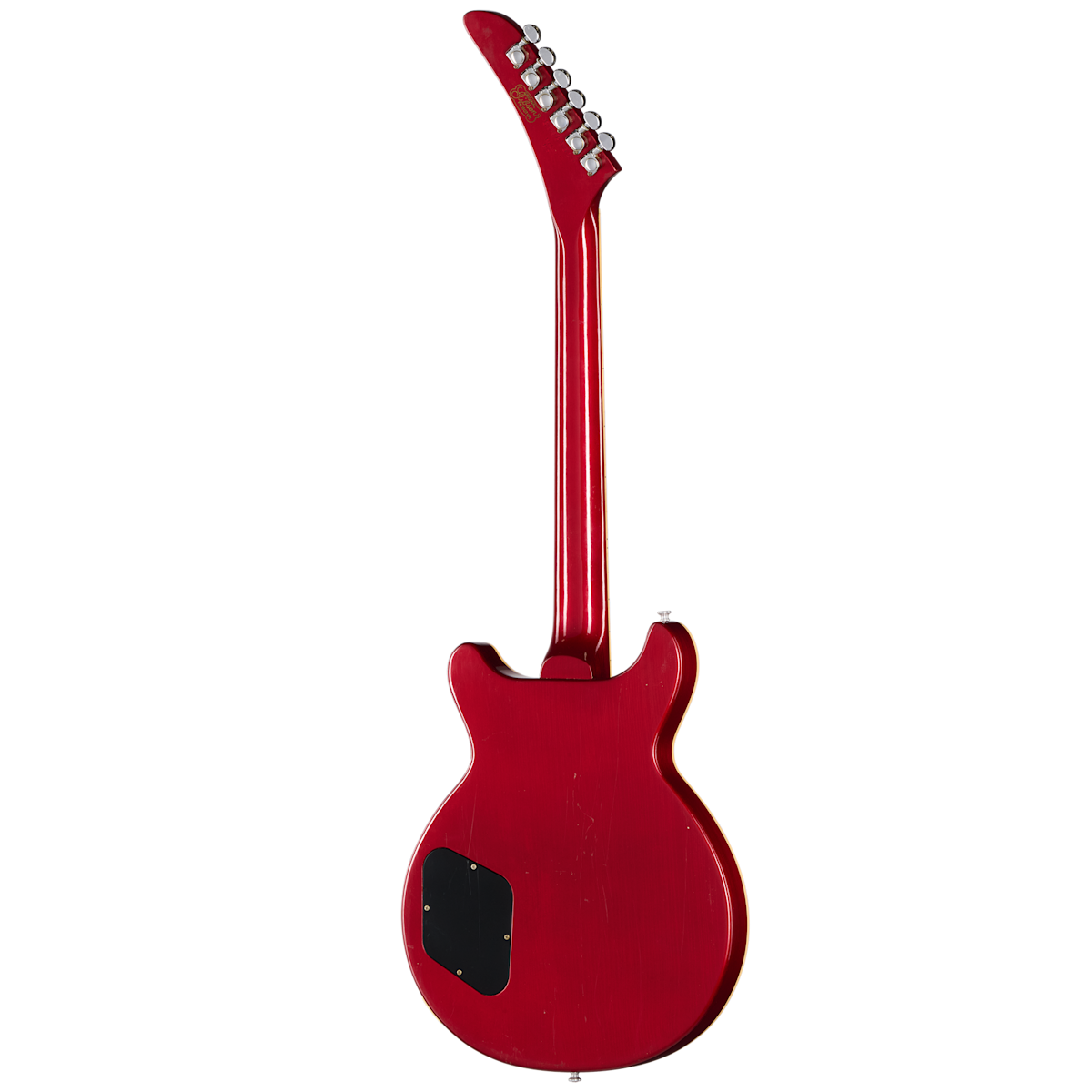

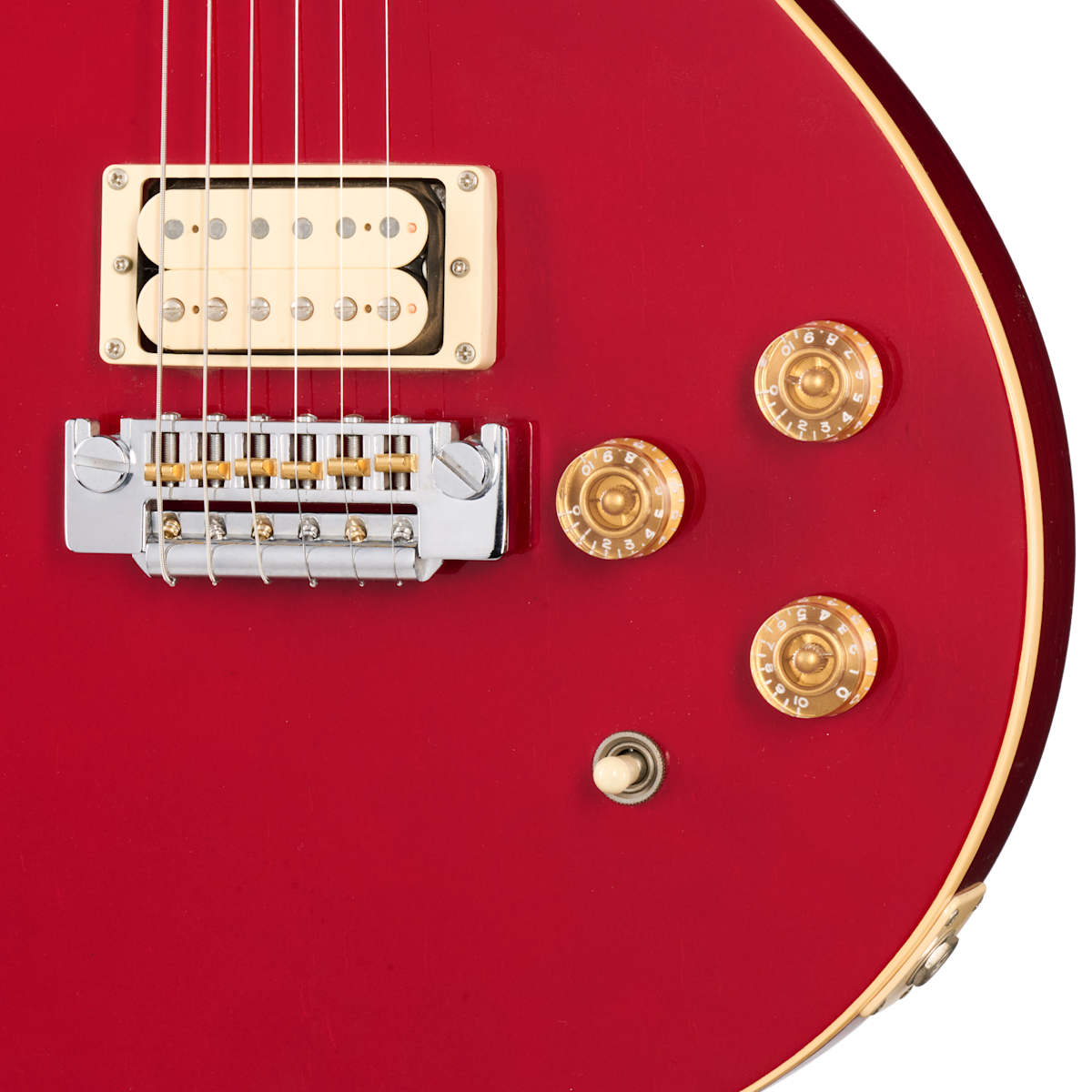

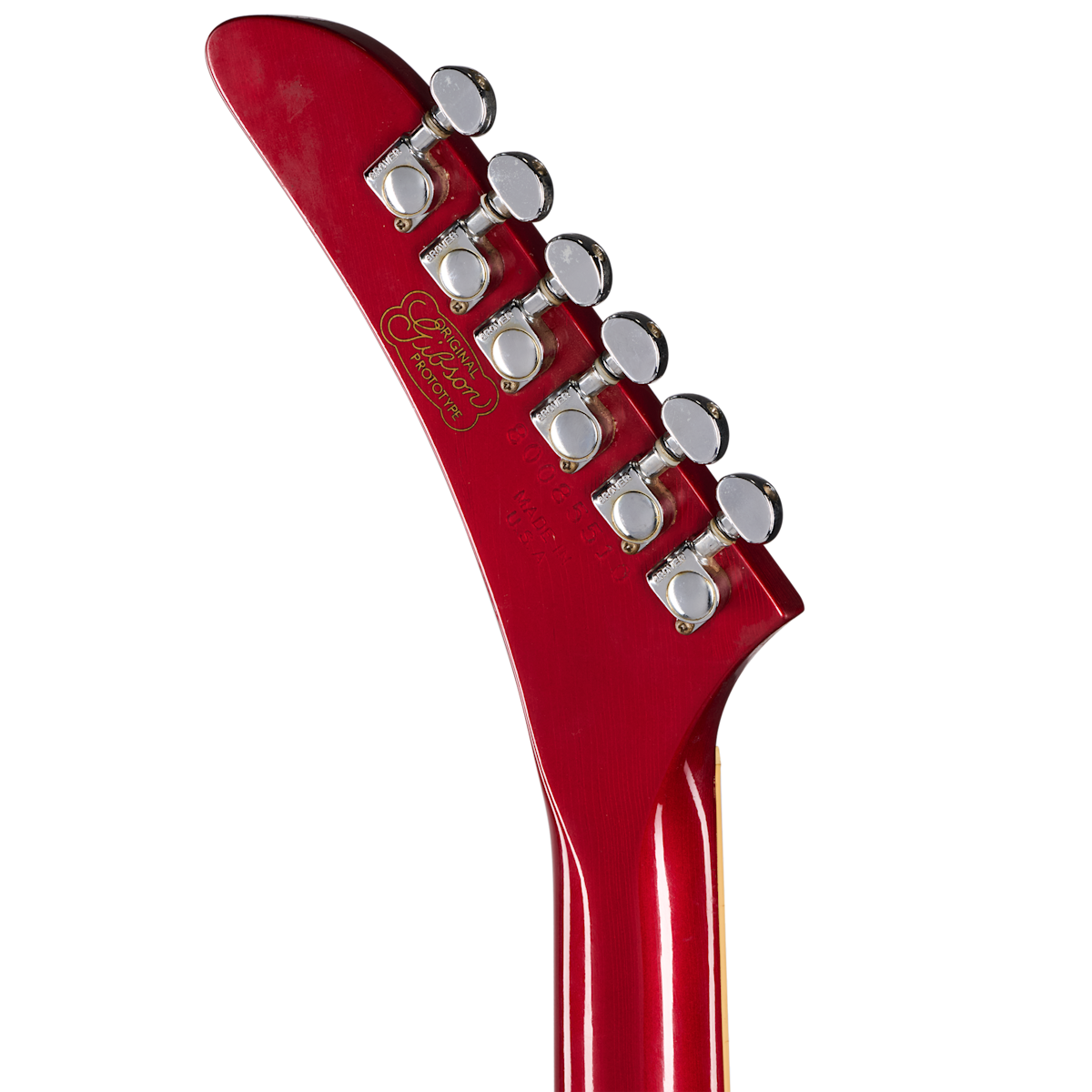

The back of the headstock bears a “Gibson Original Prototype” decal, confirming its pre-production status. The instrument has light checking on the front along with some nicks and dings, heavy uniform checking on the back and neck, and finish wear around the A, D, and B tuners. The Gibson logo is partially rubbed off, and there is fret sprout leading to cracked binding at the fret ends, though it remains stable. It retains its original Schaller Wraparound 455 bridge, Grover® Mini Rotomatics® tuners, and gold Speed knobs, all of which contribute to its distinct look and tonal character. Ships in a Gibson Premium Softshell case (black leather).
Availability Date: The purchased instrument will be available for pickup at the Gibson Garage in Nashville, or shipment to an address in the US, starting February 19, 2025.
Profile
Medium D
Scale Length
628.65 mm / 24.75 in
Fingerboard Material
Indian Rosewood
Fingerboard Radius
304.8 mm / 12 in
Neck Material
Mahogany
Fret Count
22
Frets
Medium Jumbo (Original Frets)
Nut Material
Plastic
Nut Width
42.799 mm / 1.685 in
Inlays
Acrylic Dot
Joint
Glued In, Set Neck
Body Style
Double Cut
Body Shape
Spirit (Double Cut Les Paul)
Body Material
Mahogany
Binding
Single Ply, Body and Fretboard
Body Finish
Gloss Nitrocellulose Lacquer
Weight Relief
None
Finish
Chrome
Bridge
Schaller Wraparound 455
Saddle Material
Brass
Tuning Machines
Grover Mini Rotomatic, Six In-Line
Pickguard
None
Truss Rod
Adjustable
Truss Rod Cover
2-ply, Engraved "Spirit"
Control Knobs
Gold Speed
Switch Tip
Cream
Jack Plate Cover
Cream
Plastic Parts
Cream
Control Covers
Black
Strap Buttons
2 - Aluminum
Mounting Rings
Cream
Pickup Covers
None
Neck Pickup
Patent Applied For-style Humbucker (7.98k DC Resistance)
Bridge Pickup
Patent Applied For-style Humbucker (8.31k DC Resistance)
Controls
Two Volume, Master Tone
Pickup Selector
3-way Toggle
Output Jack
1/4"
Strings Gauge
.010, .013, .017, .026, .036, .046
Case
Gibson Premium Softshell (Black Leather)
Accessories
Certificate of Authenticity, Limited Lifetime Warranty, Signed Letter of Appraisal
