Peter Frampton "Phenix" Les Paul Custom Ebony

Inspired by Peter Frampton's Legendary 1954 Les Paul Custom
Gibson Custom Shop is the pinnacle of craftsmanship, quality, and sound excellence. Each instrument celebrates Gibson's legacy through accuracy, authenticity, and attention to detail.
The "Phenix" Les Paul Custom is the iconic guitar that is heard on, and that graced the cover of 1976's classic "Frampton Comes Alive!" LP. Thought to have been lost in 1980 in a tragic cargo plane crash, it miraculously survived, and over thirty years later, it was returned to Peter, and thus earned its Phenix nickname. Now the Gibson Custom Shop is proud to offer a VOS rendition of this guitar as an Artist model. It has all of the classic Les Paul Custom cosmetic appointments, along with a weight-relieved mahogany body with a solid mahogany top, gold hardware, Grover® tuners, Schaller Strap Locks, and three open-coil Custombucker humbuckers™. The VOS finish gives it the look of a vintage original, minus the dings and scars that the original Phenix now bears. It also features custom wiring. The 3-way toggle switch controls the neck and bridge pickups, just as on a two-pickup Les Paul Custom, and they share a volume and tone control. The second set of volume and tone controls are connected to the middle pickup; it can be used with either (or both) of the other two pickups. It can even be used by itself when the other pickups are turned down, making this Phenix-inspired model not only an iconic looking and great sounding guitar, but a highly flexible one as well.
Body Style
Les Paul
Body Shape
Les Paul
Body Material
Mahogany
Top
Solid Mahogany
Binding
Multi-ply
Body Finish
Gloss Nitrocellulose Lacquer
Weight Relief
9-Hole
Profile
Artist Profile
Scale Length
628.65 mm / 24.75 in
Fingerboard Material
Ebony
Fingerboard Radius
304.8 mm / 12 in
Neck Material
Mahogany
Fret Count
22
Frets
Jumbo
Nut Material
Bone
Nut Width
42.86 mm / 1.687 in
Inlays
Custom Block; Frampton Signature Sandblasted into 12th Fret Inlay
Joint
Set Neck
Finish
Gold VOS
Bridge
Tune-O-Matic
Tailpiece
Lightweight Aluminum Stop Bar with Long Stud/Anchor

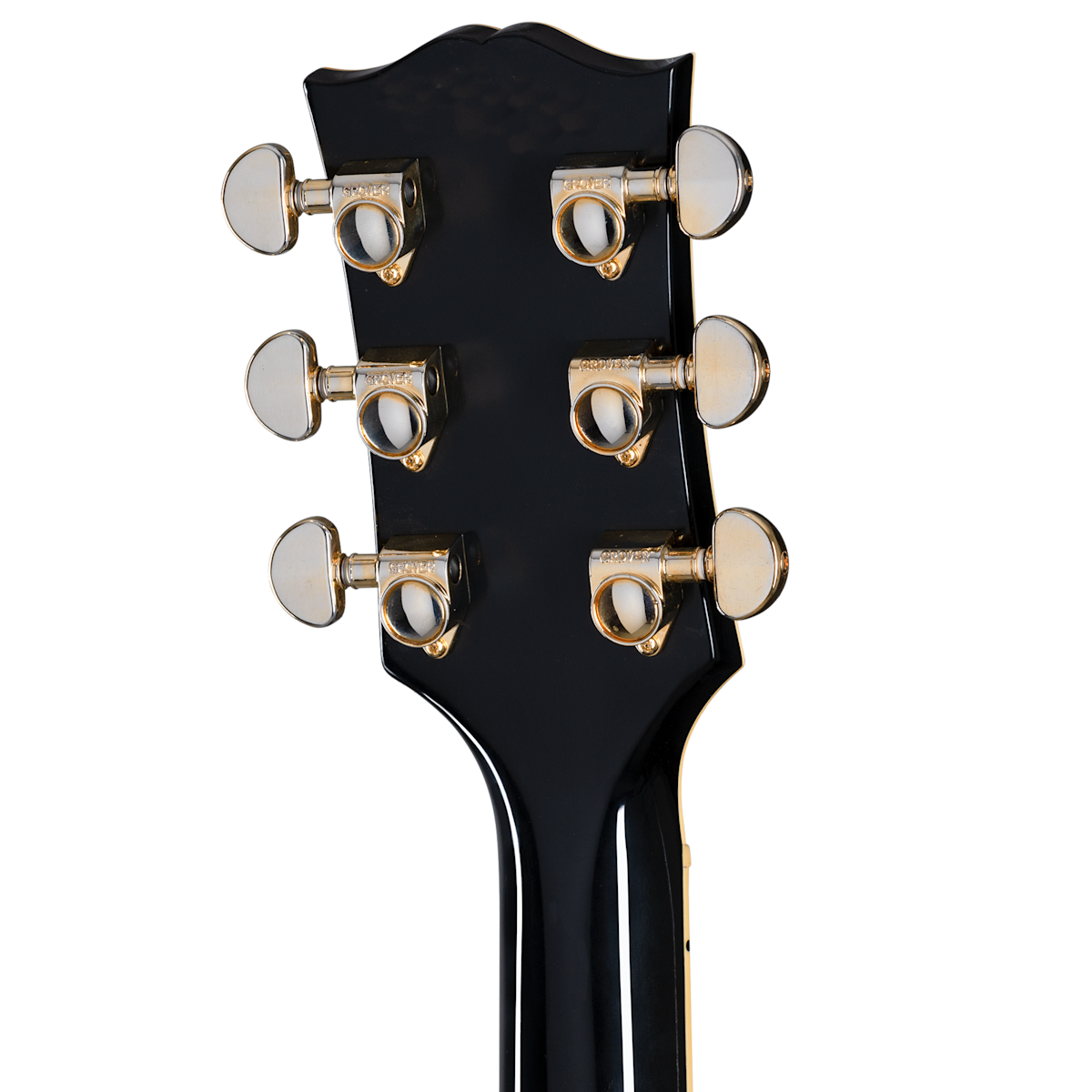

Tuning Machines
Grover Kidney
Pickguard
None
Truss Rod
Standard

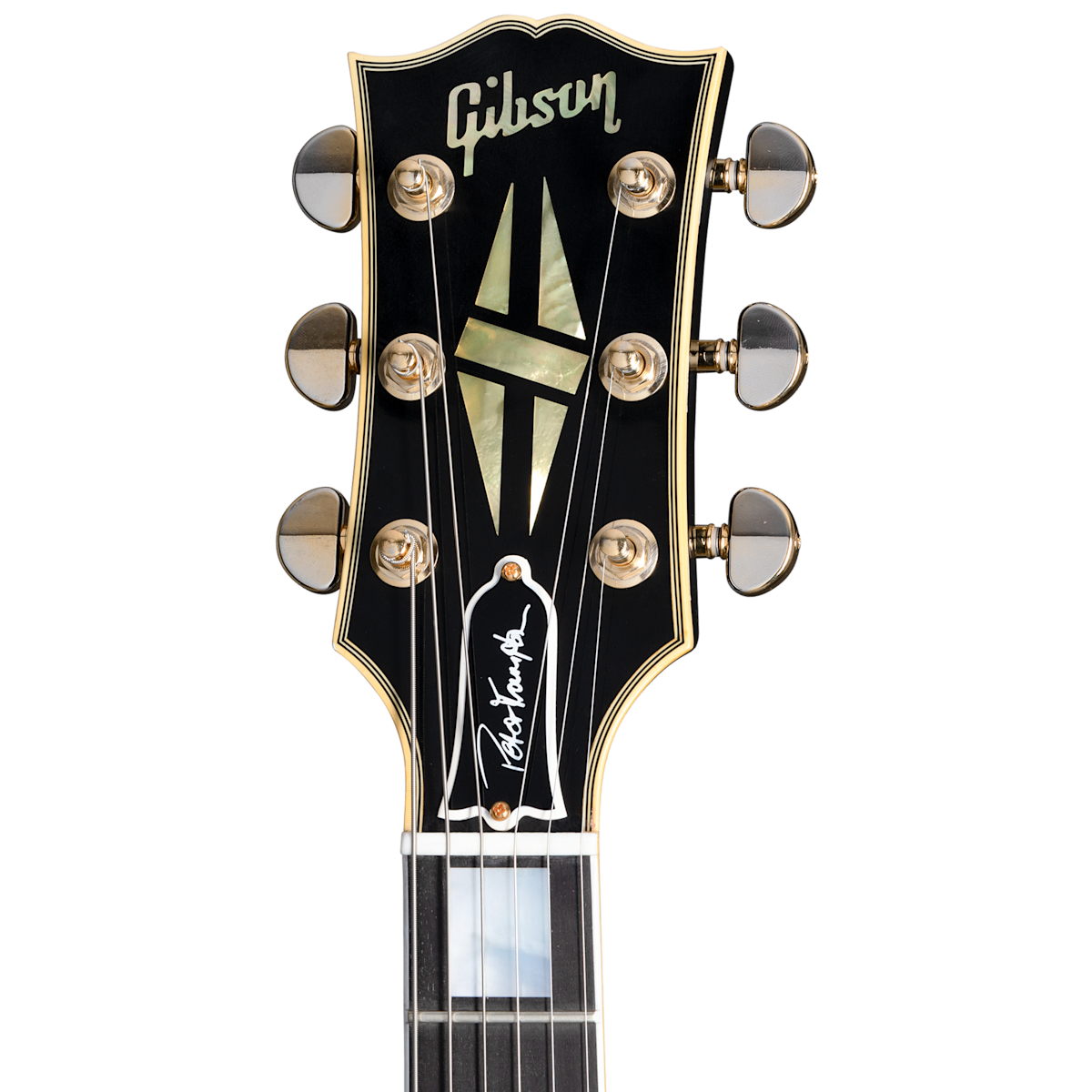

Truss Rod Cover
True Historic Black; Frampton Signature

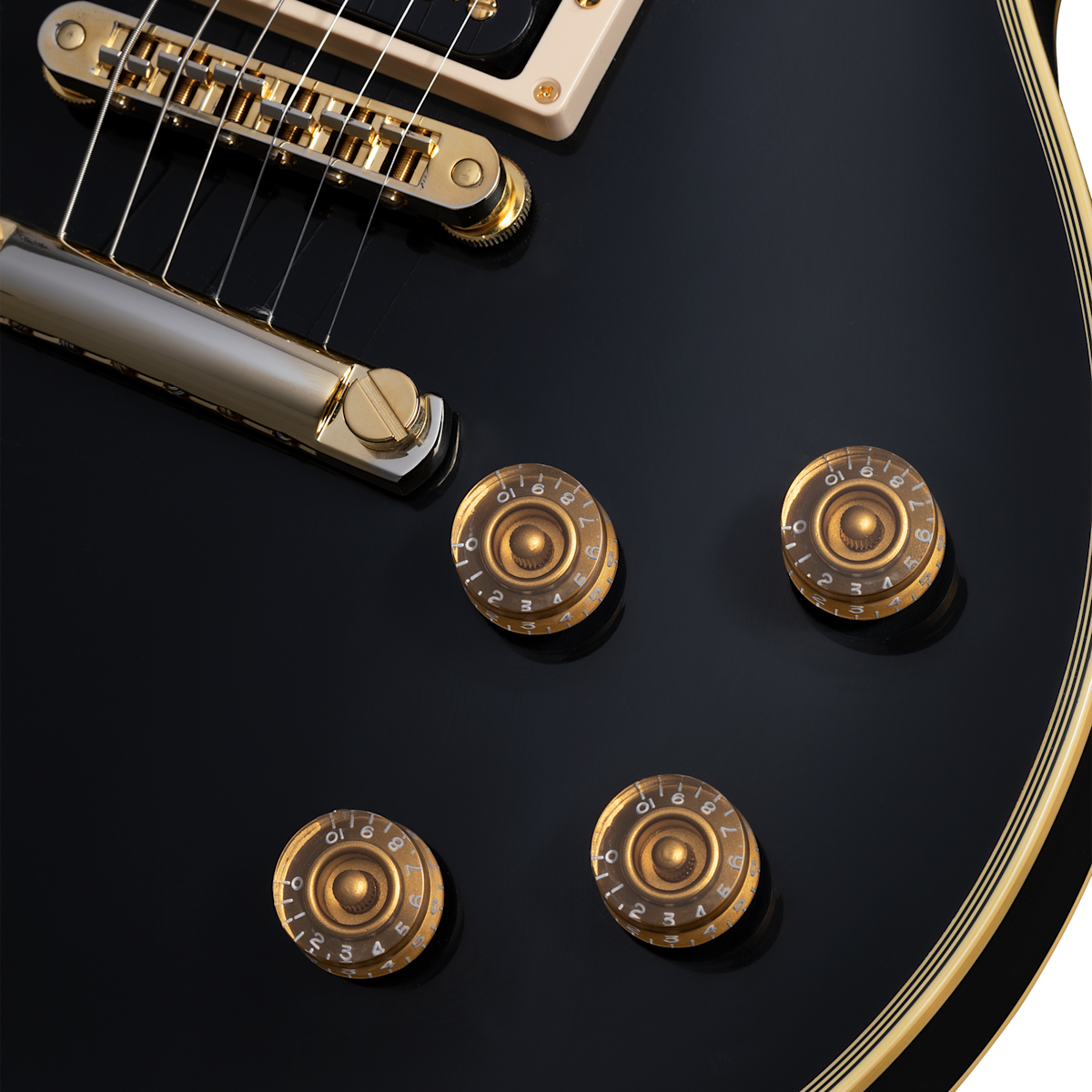

Control Knobs
Gold Speed Knobs
Switch Tip
Gold
Switch washer
True Historic Cream
Jack Plate Cover
Gold
Control Covers
Reissue Black, plus Custom Shop Medallion
Strap Buttons
2 - Bottom and Shoulder (Schaller Strap Locks)
Mounting Rings
Cream
Pickup Covers
None
Neck Pickup
Custombucker
Middle Pickup
Custombucker
Bridge Pickup
Custombucker
Controls
Master Volume and Tone shared by Neck and Bridge Pickups, Second Volume and Tone for Middle Pickup (independent of P/U selector toggle switch), CTS Potentiometers, Paper in Oil Capacitors
Pickup Selector
3-Way Switchcraft
Output Jack
1/4" Switchcraft
Strings Gauge
.010, .013, .017, .026, .036, .046
Case
Gibson Hardshell Case
Accessories
Schaller Strap Lock Strap Buttons
